SPECIFICATIONS

Nominal Voltage: 12.8V

Nominal Capacity: 100Ah 0.2C

Built-in BMS:100A

Energy: 1280Wh

Cycle Life: ＞6000 cycles at 0.2C; End of life 70% capacity.

Charge Voltage: 14.6±0.2V

Charger Current: 7A

Max. Charge Current: 50A

Max. Continuous Current: 100A

Max. Pulse Current: 200A(＜3S)

Discharge Cut-off Voltage: 10.0V

Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity

Discharge Temperature: -30 to 60℃ (-4 to 140℉) at 60±25% relative humidity

Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity

Water Dust Resistance: IP65

Upgrade Parts/Accessories: Grade A

Case Material: ABS

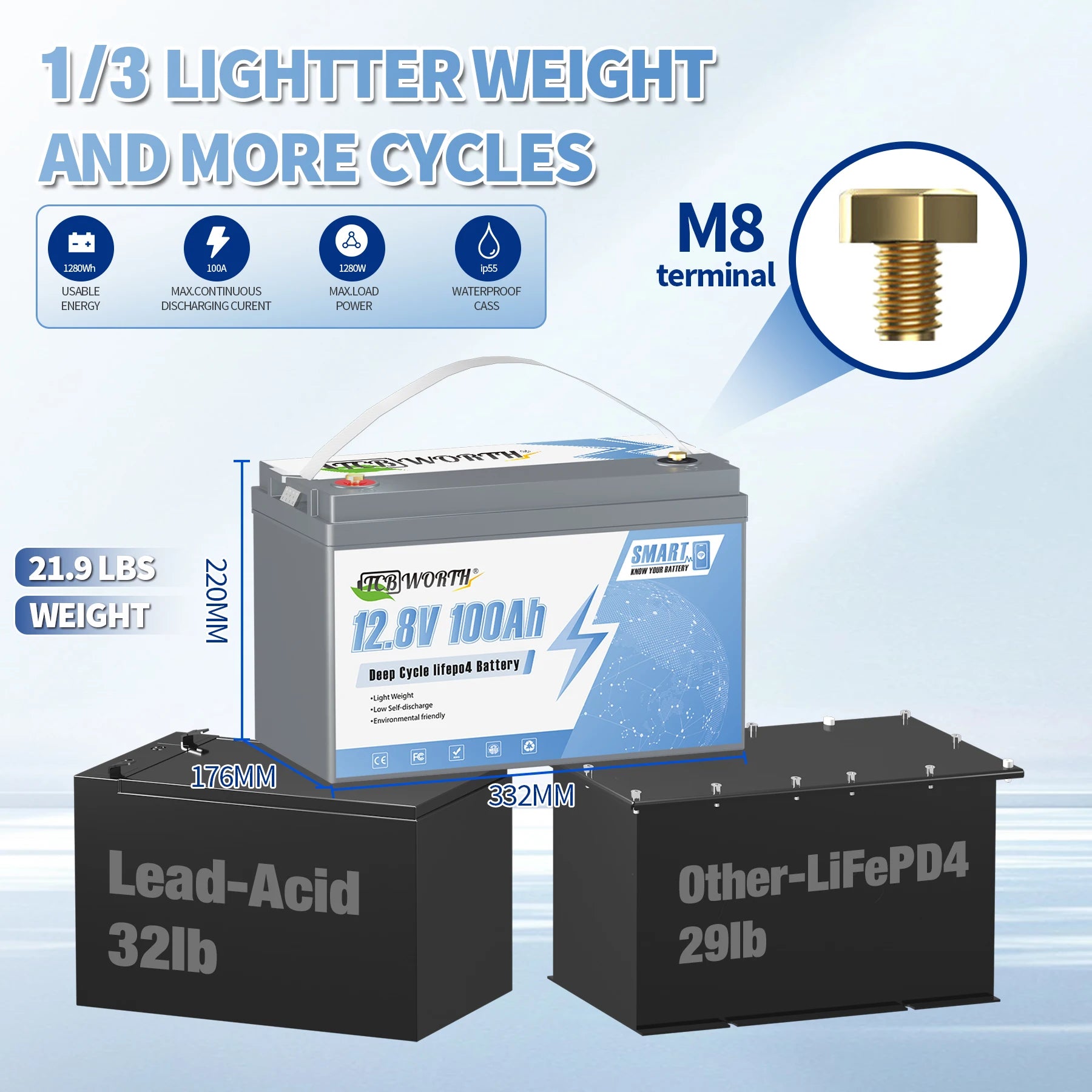

Dimension (L/W/H): 332*176*220mm

Weight: Approx. 11kg

Terminal Type: M8
